WIRING NOTES

Countryman E6 Cables' Colours

1. For E6 with Duramax 2mm cable, substitute RED for WHITE
2. For E6 with Duramax 2mm cable, clip the BLACK wire.

Sennheiser G3 Versions
In 2009 Sennheiser released the third generation of their Evolution Wireless systems, the G3. The G3 transmitters introduced a significant change in the microphone input circuit requiring an adjustment in microphone wiring. Microphones affected by the change have product codes ending in "SR" (e.g. B6W4FF05BSR , E6OW5T2SR, etc.)

If your Countryman microphone was purchased after June 2009: Your microphone with product code ending in "SR" will work as wired with all versions of the Evolution Series, including the G3.

If your Countryman microphone was purchased before June 2009: Your microphone with product code ending in"SR" built before the introduction of the G3 Series may require some rewiring in the connector to achieve optimal performance with G3 systems. Rewired cables will work with the G3 and all previous versions of the Evolution Series.

BRAND	CODE	MODEL	CONNECTOR	E6/B6	B3	EMW	ISOMAX 2
AKG	AG	PT51, PT300, PT900	AKG B-LOC (3.5mm locking male thread)	Sleeve = S Tip = W 10k ohms Tip to Sleeve 5V Zener Diode stripe end to tip other end to sleeve diagram	Sleeve = S+B Tip = R diagram	Sleeve = S+B Tip = R diagram	Sleeve = S+B Tip = R Use W3 type headset diagram
AKG	AK	PT40, PT60, PT61, PT80, PT81, PT400, PT2000, PT4000	Switchcraft TA3F	Pin 1= S Pin 3 = W Jumper 2 to 3 1 to 2 = 6.8k ohms diagram	Pin 1= S+B Pin 2 = R Jumper 2 to 3 diagram	Pin 1 = S + B Pin 2 = R Jumper 2 to 3 diagram	Pin 1 = S+B Pin 2 = R Jumper 2 to 3 Use W3 type headset diagram
Audio Limited	AL	TX 2000, RMS-2000-mxl	Lemo 6-pin FFA2C306CAA	Pin 1 = W Pin 5 = S Jumper 1 to 2 Jumper 3 to 4 5V Zener Diode + to 5, - to 1 diagram	Pin1 = R Pin5 = S + B Jumper 1 to 2 Jumper 3 to 4 diagram	Pin1 = B Pin 3 = R Pin 5 = S Jumper 1 to 6 Jumper 3 to 4 diagram	Pin 1 = B Pin 3 = R Pin 5 = S Jumper 1 to 6 Jumper 3 to 4 Use W5 type headset diagram
Audio Technica	AN	T35, T75, T211, T601, 1000 Series, 1200 Series, 4000 Series, 5000 Series, 7000 Series	Hirose 4-pin HR10A-7P-4S (female pins)	Pin 1 = S Pin 3 = W 15k ohms 3 to 4 diagram	Pin 1 = S Pin 3 = B Pin 4 = R diagram	Pin 1 = S Pin 3 = B Pin 4 = R diagram	Pin 1 = S Pin 3 = B Pin 4 = R Use W5 type headset diagram
Audio Technica	AT	T27, T31, T51, T200, T210, T300, T310, 1100 Series, 1400 Series, 2000 Series, 3000 Series	Hirose 4 pin HR10A-7P-4S	Pin 1 = S Pin 3 = W Jumper 1 to 2 2.7k ohms 3 to 4 diagram	Pin 1 = S Pin 3 = B Pin 4 = R Jumper 1 to 2 diagram	Pin 1 = S Pin 3 = B Pin 4 = R Jumper 1 to 2 diagram	Pin 1 = S Pin 3 = B Pin 4 = R Jumper 1 to 2 Use W5 type headset diagram
Audio Technica	AW	ATW-U101	Switchcraft TA5F	Pin 1 = S Pin 3 = W Jumper 2 to 4 4.7k ohms 1 to 3 diagram	Pin 1 = S + B Pin 3 = R Jumper 2 to 4 diagram	Pin 1 = S + B Pin 3 = R Jumper 2 to 4 diagram	Pin 1 = S Pin 3 = B Pin 2 = R Use W5 type headset diagram
Audix	AD	360	TA3F	Pin 1 = S Pin 2 = W 6.8k ohms 2 to 3 diagram	Pin 1 = S+B Pin 2 = R 6.8k ohms 2 to 3 diagram	Pin 1 = S Pin 2 = B Pin 3 = R 10k ohms 1 to 2 diagram	Pin 1 = S Pin 2 = B Pin 3 = R 10k ohms 1 to 2 Use W5 type headset diagram
Beyer	BS	TS-170, TS-170p, TS-190	Lemo type S 4-pin	Pin 2 = S Pin 1 = W 10k ohms 1 to 3 diagram	Pin 2 = S + B Pin 4 = R diagram	Pin 1 = B Pin 2 = S Pin 3 = R diagram	Pin 1 = B Pin 2 = S Pin 3 = R use w5 type headset diagram
Beyer	BT	TS-300, TS-400, TS-600	Lemo type S 4 pin	Pin 1 = S Pin 4 = W 10k ohms 2 to 4 diagram	Pin 1 = S+B Pin 3 = R diagram	Pin 1 = S Pin 2 = R Pin 4 = B 10k ohms 1 to 4 diagram	Pin 1 = S Pin 2 = R Pin 4 = B 10k ohms 1 to 4 Use W5 type headset diagram
Beyer	MI	Opus Series, TS-100, TS-300, TS-500, TS-800	Screw on TA4F	Pin 1 = S Pin 3 = W Jumper 2 to 4 diagram	Pin 1 = S Pin 3 = B Pin 4 = R Jumper 1 to 2 diagram	Pin 1 = S Pin 3 = B Pin 4 = R Jumper 1 to 2 diagram	Pin 1 = S Pin 3 = B Pin 4 = R Jumper 1 to 2 Use W5 headset diagram

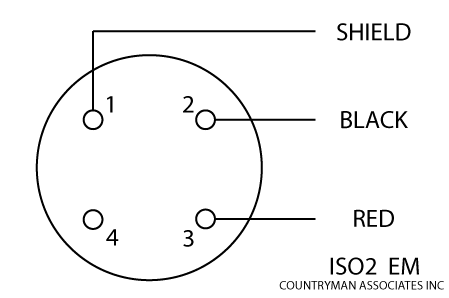

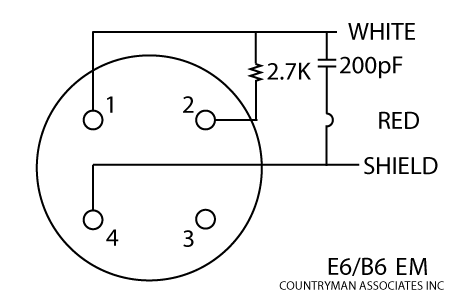

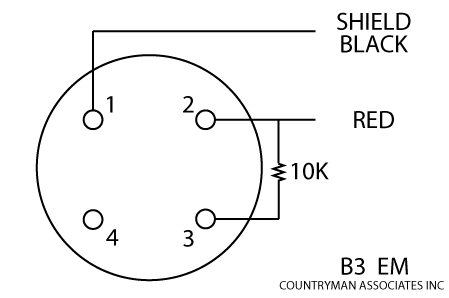

Electrovoice	EM	RTM-1	Lemo 4 pin	6.8k ohms 2 to 3 Pin1 = S Pin2 = W diagram	10k ohms 2 to 3 Pin 1 = S+B Pin 2 = R diagram	Pin 1 = S Pin 2 = B Pin 3 = R diagram	Pin 1 = S Pin 2 = B Pin 3 = R diagram
Electrovoice	ET	3000 Series, N/DYM NBPU, MSB, BPV, BPU, BPU2, CSB-1000, RE-1, RE-2	Switchcraft TA4F	6.8k ohms 2 to 3 Pin 1 = S Pin 2 = W diagram	10k ohms 2 to 3 Pin 1 = S+B Pin 2 = R diagram	Pin 1 = S Pin 2 = B Pin 3 = R 10k ohms1 to 2 diagram	Pin 1 = S Pin 2 = B Pin 3 = R 10k ohms1 to 2 diagram
Electrovoice	EV	2000 Series, 2500 Series	Switchcraft TA4F	Jumper 2 to 3 Pin 3 = W Pin 4 = S diagram	Pin 2 = R Pin 4 = S+B diagram	Pin 1 = R Pin 3 = B Pin 4 = S 10k ohms 3 to 4 diagram	Pin 1 = R Pin 3 =B Pin 4 = S 10k ohms 3 to 4 diagram
Lectrosonics	L2	M170, M175	Switchcraft 851	Tip = W Sleeve = S 10k ohms tip to sleeve diagram	Tip = R Sleeve = S+B diagram	Tip = R Sleeve = S+B diagram	Tip = R Sleeve = S+B Use W4 type headset diagram
Lectrosonics	L4	UM Series, LM Series �	Switchcraft TA5F	Pin 1 = S 1.5k ohm Pin 2 to 3 3.3k pin 3 to white Crimp fingers to shield diagram	Pin 1 = S+B Pin 3 = R Jumper 2 to 4 Crimp fingers to shield diagram	Pin 1 = S+B Pin 3 = R Jumper 2 to 4 Crimp fingers to shield diagram	Pin 1 = S Pin 2 = R Pin 3 = B Jumper 1 to 4 C201 1 to 2 C201 3 to 4 Crimp fingers to shield Use W5 type headset diagram
Lectrosonics	LE	H Series	Switchcraft A3M	Pin 1 = S 10K Pin 2 to W 1uF Pin 2 to W diagram	Pin 1 = S+B Pin 2 = R diagram	Pin 1 = S+B Pin 2 = R diagram	Pin 1 = S+B Pin 2 = R Use W4 type headset diagram
Lectrosonics	LS	M Series over 185	Switchcraft TA5F	Pin 1 = S 1.5k ohm Pin 2 to 3 3.3k pin 3 to white diagram	Pin 1 = S+B Pin 3 = R Jumper 2 to 4 diagram	Pin 1 = S+B Pin 3 = R Jumper 2 to 4 diagram	Pin 1 = S Pin 2 = R Pin 3 = B Jumper 1 to 4 C201 1 to 2 C201 3 to 4 Use W5 type headset diagram

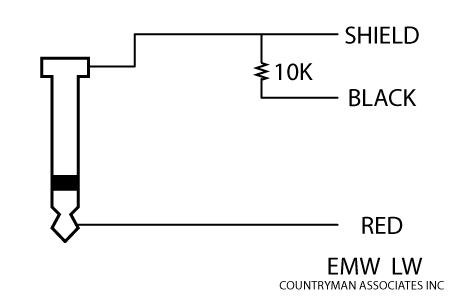

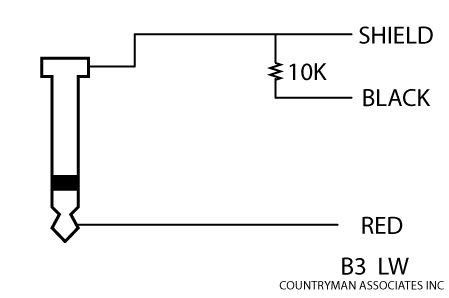

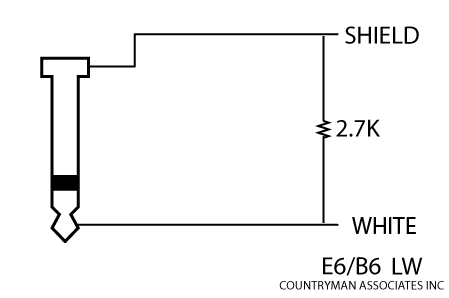

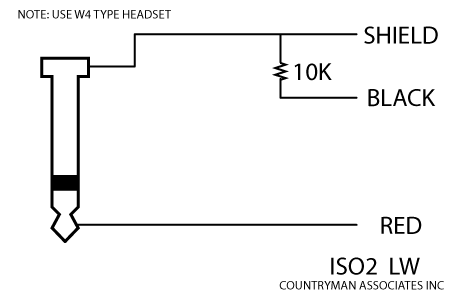

Lectrosonics	LW	MM400	Waterproof 2.5mm	Tip = W Sleeve = S 10k ohms tip to sleeve 5V Zener Diode + to tip - to sleeve diagram	Tip = R Sleeve = S+B diagram	Tip = R Sleeve = S 10K B to Sleeve diagram	Tip = R Sleeve = S+B Use W4 type headset diagram
Lectrosonics	LX	UH Series	Switchcraft A3M	Pin 1 = S 10K Pin 2 to W 1uF Pin 2 to W Crimp fingers to shield diagram	Pin 1 = S+B Pin 2 = R Crimp fingers to shield diagram	Pin 1 = S+B Pin 2 = R Crimp fingers to shield diagram	Pin 1 = S+B Pin 2 = R Use W4 type headset Crimp fingers to shield diagram
Lectrosonics	SM	SM Series, UMa Series, LMa Series	Switchcraft TA5F	Pin 1 = S pin 3 to white diagram	Pin 1 = S+B Pin 3 = R Jumper 2 to 4 diagram	Pin 1 = S+B Pin 3 = R Jumper 2 to 4 diagram	Pin 1 = S+B Jumper Pin 2 to Pin 4 Pin 3 = 1.8k to R Use W3 type headset diagram
Micron	M7	TX 700.xx (negative ground)	Lemo 6 pin	Pin 1 = W Pin 5 = S Jumper 4 to 5 6.8k ohms 1 to 6 Zener diode (5.1V) 5 to 1 diagram	Pin 1 = R Pin 5 = S+B Jumper 4 to 5 Jumper 1 to 6 diagram	Pin 1 = B Pin 5 = S Pin 6 = R Jumper 4 to 5 10k ohms 1 to 5 diagram	Pin 1 = B Pin 5 = S Pin 6 = R Jumper 4 to 5 10k ohms 1 to 5 Use W5 type headset diagram

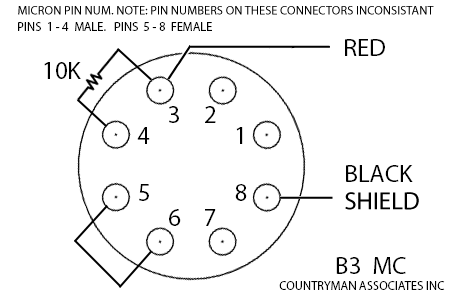

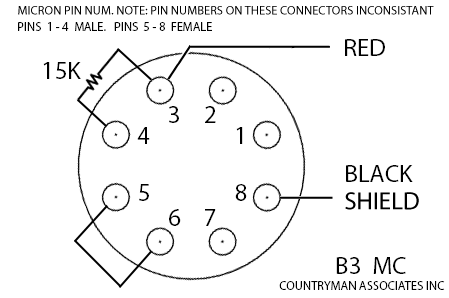

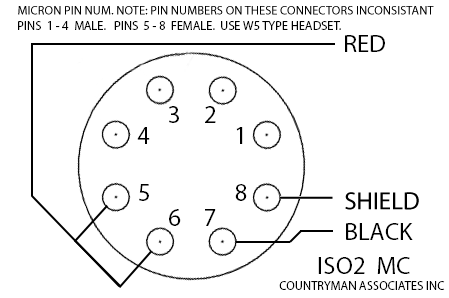

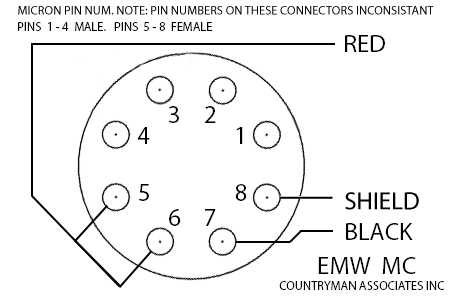

Micron	MC	TX 101, TX 102, TX 501, TX 502 (Older Positive Ground Types)	Lemo 8 pin FFA2C308LAC Caution: the pin numbering on these connectors is inconsistant	(Micron Pin Numbers) Pin 8 = S Pin 3 = W 15k ohms 3 to 4 Jumper 5 to 6 diagram	(Micron Pin Numbers) Pin 8 = S+B Pin 3 = R 10k ohms 3 to 4 Jumper 5 to 6 diagram	Pin 8 = S Pin 7 = B Pin 6 = R Jumper 5 to 6 diagram	Pin 8 = S Pin 7 = B Pin 6 = R Jumper 5 to 6 Use W5 type headset diagram

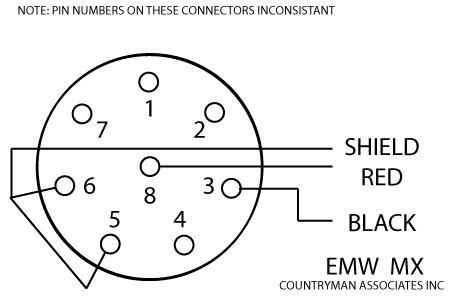

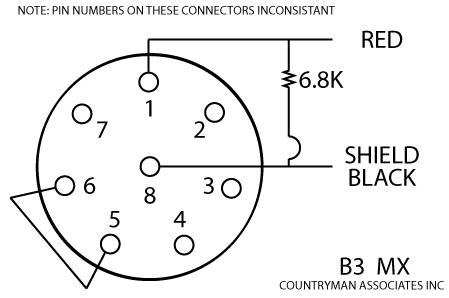

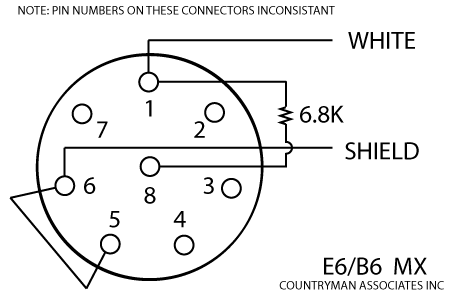

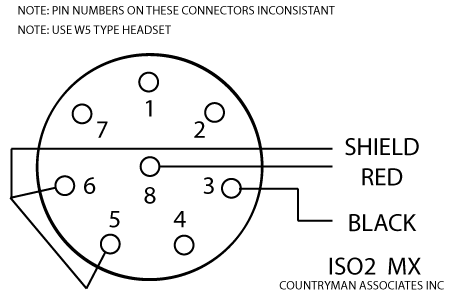

Micron	MX	TX 500.xx (negative ground)	Lemo 8 pin FFA2C308LAC Caution: the pin numbering on these connectors is inconsistant	Pin 6 = S Pin 1 = W 6.8K ohms 1 to 8 Jumper 5 to 6 diagram	Pin 6 = S+B Pin 1 = R 6.8K ohms 1 to 8 Jumper 5 to 6 diagram	Pin 6 = S Pin 8 = R Pin 3 = B Jumper 5 to 6 diagram	Pin 6 = S Pin 8 = R Pin 3 = B Jumper 5 to 6 Use W5 type headset diagram
Sennheiser	S1	BF1083	Lemo 1 pin	Shell = S Pin = W diagram	Shell = S+B Pin = R diagram	Shell = S+B Pin = R diagram	Shell = S+B Pin = R Use W3 type headset diagram
Sennheiser	S2	SK2000	Lemo 3 pin	Jumper 1 to 3 Pin2 = W Pin3 = S diagram	Jumper 1 to 3 Pin2 = R Pin3 = S+B diagram	Jumper 1 to 3 Pin2 = R Pin3 = S+B diagram	Jumper 1 to 3 Pin2 = R Pin3 = S+B Use W3 type headset diagram
Sennheiser	S3	SK-50, SK250, SK3063, SK5012	Lemo 3 pin	Pin2 = W Pin3 = S diagram	Pin2 = R Pin3 = S+B diagram	Pin2 = R Pin3 = S+B diagram	Pin2 = R Pin3 = S+B Use W3 type headset diagram
Sennheiser	SE	SK2012	Microdot	Shell = S Pin = W diagram	Shell = S+B Pin = R diagram	Shell = S+B Pin = R diagram	Shell = S+B Pin = R Use W3 type headset diagram
Sennheiser	SR	Evolution Series, EW100, EW300, EW500, G2, G3*, SK 1093 See the wiring notes on the top	3.5 mm plug	Sleeve = S Tip = W Jumper ring to sleeve 5V Zener Diode + to tip - to sleeve diagram	Sleeve = S+B Tip = R Jumper ring to sleeve diagram	Sleeve = S+B Tip = R Jumper ring to sleeve diagram	Sleeve = S+B Tip = R Jumper ring to sleeve Use W3 type headset diagram
Shure	SL	L1, L11, LX1, SC1, U1, UC1, UT1, T1, ULX1, UR1, PGX	Switchcraft TA4F	Pin1 = S Pin3 = W 4.7k pin 2 to Pin 3 5V Zener Diode stripe end to Pin 3 other end to Pin 1 diagram	Pin1 = S+B Pin3 = R 10k ohms 2 to 3 diagram	Pin1 = Shield Pin2 = R Pin3 = B 22k pin1 to pin 3 diagram	Pin1 = Shield Pin2 = R Pin3 = B 22k pin 1 to pin 3 Use W5 type headset diagram

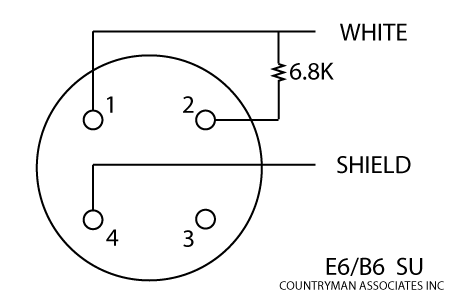

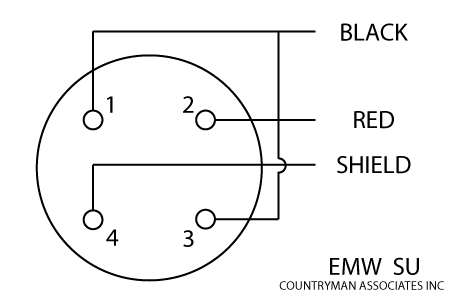

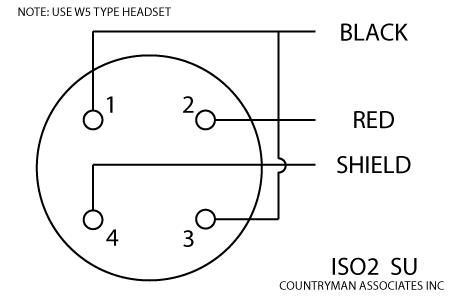

Shure	SU	U1L, UC1L	Lemo 4 pin	Pin4 = S Pin1 = W 6.8k ohms 1 to 2 diagram	Pin4 = S Pin2 = R Pin1 = B jumper 1 to 3 diagram	Pin4 = S Pin2 = R Pin1 = B jumper1 to 3 diagram	Pin4 = S Pin2 = R Pin1 = B Jumper 1 to 3 Use W5 type headset diagram
Sony	SO	WRT-28, 820	Hirose Twist lock type 4 pin	Pin4 = S Pin2 = W junper 1 to 3 1.8k ohms 2 to 3 diagram	Pin4 = S+B Pin2 = R junper 1 to 3 1.8k ohms 2 to 3 diagram	Pin1 = R Pin2 = B Pin4 = S 1.8k ohms 2 TO 3 6.8k ohms 3 to 4 diagram	Pin1 = R Pin2 = B Pin4 = S 1.8k ohms 2 TO 3 6.8k ohms 3 to 4 Use W5 type headset diagram
Sony	SY	WRT-822, 420	Hirose Twist lock type 4 pin	Pin4 = S Pin2 = W 6.8k ohms 1 to 3 1.8k ohms 2 to 3 diagram	Pin4 = S+B Pin2 = R 6.8k ohms 1 to 3 1.8k ohms 2 to 3 diagram	Pin1 = R Pin2 = B Pin4 = S 1.8k ohms 2 TO 3 6.8k ohms 3 to 4 diagram	Pin1 = R Pin2 = B Pin4 = S 1.8k ohms 2 TO 3 6.8k ohms 3 to 4 Use W5 type headset diagram
Sony	SN	WRT-805, UTX-B1, UWP Series	Sony K1324 (3.5 mm)	Tip = W Sleeve = S 6.8K ohms Tip to Ring 5V Zener Diode + to tip - to sleeve diagram	Tip = B Ring = R Sleeve = S diagram	Tip = B Ring = R Sleeve = S diagram	Tip = B Ring = R Sleeve =S Use W5 type headset diagram
Telex	TL	WT 200, WT400, WT450	Lemo 4 pin	Pin 1 = S Pin 2 = W 6.8k ohms 2 to 3 diagram	Pin 1 = S+B Pin 2 = R jumper 2 to 4 diagram	Pin 1 = S Pin 2 = B Pin 3 = R 10K ohms 1 to 2 diagram	Pin 1 = S Pin 2 = B Pin 3 = R 10K ohms 1 to 2 diagram
Telex	TS	LT100, PST16, VB12, WT10, WT50, WT55, WT60, WT80, WT700, WT1000	Switchcraft TA4F	Pin 1 = S Pin 2 = W 6.8k ohms 2 to 3 diagram	Pin1 = S+B Pin2 = R 10k ohms 2 to 3 diagram	Pin1 = S Pin2 = B Pin3 = R 10k ohms 1 to 2 diagram	Pin1 = S Pin2 = B Pin3 = R 10k ohms 1 to 2 Use W5 type headset diagram
Toa	TA	WM4300	Switchcraft TA4F	�Pin 1 = S Pin 3 = W 1.5k ohms 1 to 3 Jumper 3 to 4 diagram	�Pin 1 = S+B Pin 4 = R diagram	�Pin 1 = S Pin 2 = R Pin 3 = B diagram	�Pin 1 = S Pin 2 = R Pin 3 = B Use W4 type Headset diagram
Toa	TO	WM370, WM4310	Special Toa 3.5mm	�Tip = W Sleeve = S diagram	�Tip = R Sleeve = S+B diagram	�Tip = R Sleeve = S+B diagram	�Tip = R Sleeve = S+B Use W4 type headset diagram
Trantec	SL	S5	Switchcraft TA4F	Pin1 = S Pin3 = W 4.7k pin 2 to Pin 3 5V Zener Diode stripe end to Pin 3 other end to Pin 1 diagram	Pin1 = S+B Pin3 = R 10k ohms 2 to 3 diagram	Pin1 = Shield Pin2 = R Pin3 = B 22k pin1 to pin 3 diagram	Pin1 = Shield Pin2 = R Pin3 = B 22k pin 1 to pin 3 Use W5 type headset diagram

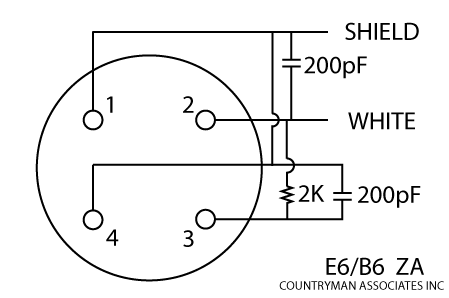

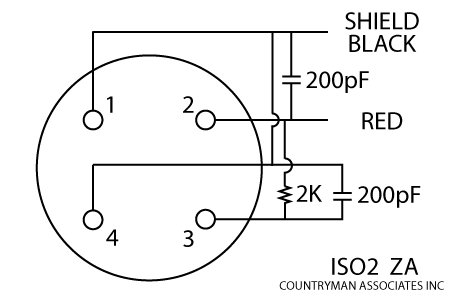

Zaxcom	ZA	All	Lemo micro 4 pin	Pin 1 = S Pin 2 = W Jumper 1 to 4 2.2K ohms 2 to 3 200pF 1 to 2 200pF 3 to 4 diagram	Pin 1 = S+B Pin 2 = R Jumper 1 to 4 2.2K ohms 2 to 3 200pF 1 to 2 200pF 3 to 4 diagram	�	Pin 1 = S+B Pin 2 = R Jumper 1 to 4 2.2K ohms 2 to 3 200pF 1 to 2 200pF 3 to 4 diagram
